HHP Series
all categories  > surface mount  > jumper  > jumper socket

>> request quote / information   |   >> download specs

  • Easily on/off by the combination of HHP series and JHP-3.
  • Reflow type.
  • Use of glue between PC board and resin part is also recommendable.
  • Contact Resistance....10m ohm or less
  • Current Rating....1A
  • Dielectric Strength....500V AC, DC 1min (MC-1 series)
  • Finish....Contact part..Au plating over Ni
  • Insulation Resistance....500M ohm or more
  • Material....
    Pin Part..Bellium copper
    Resin Part..PCT black (UL94V-0)
  • Mating/unmating (times)....100 times or more
  • Mating/unmating forces....50g or more
  • Recommended Through-hole Diameter (phi mm)....0.3

Save To Favorites
Download Catalog
Ask a Question
Pre-Production Quote Request
Request Sample


N/O
Package

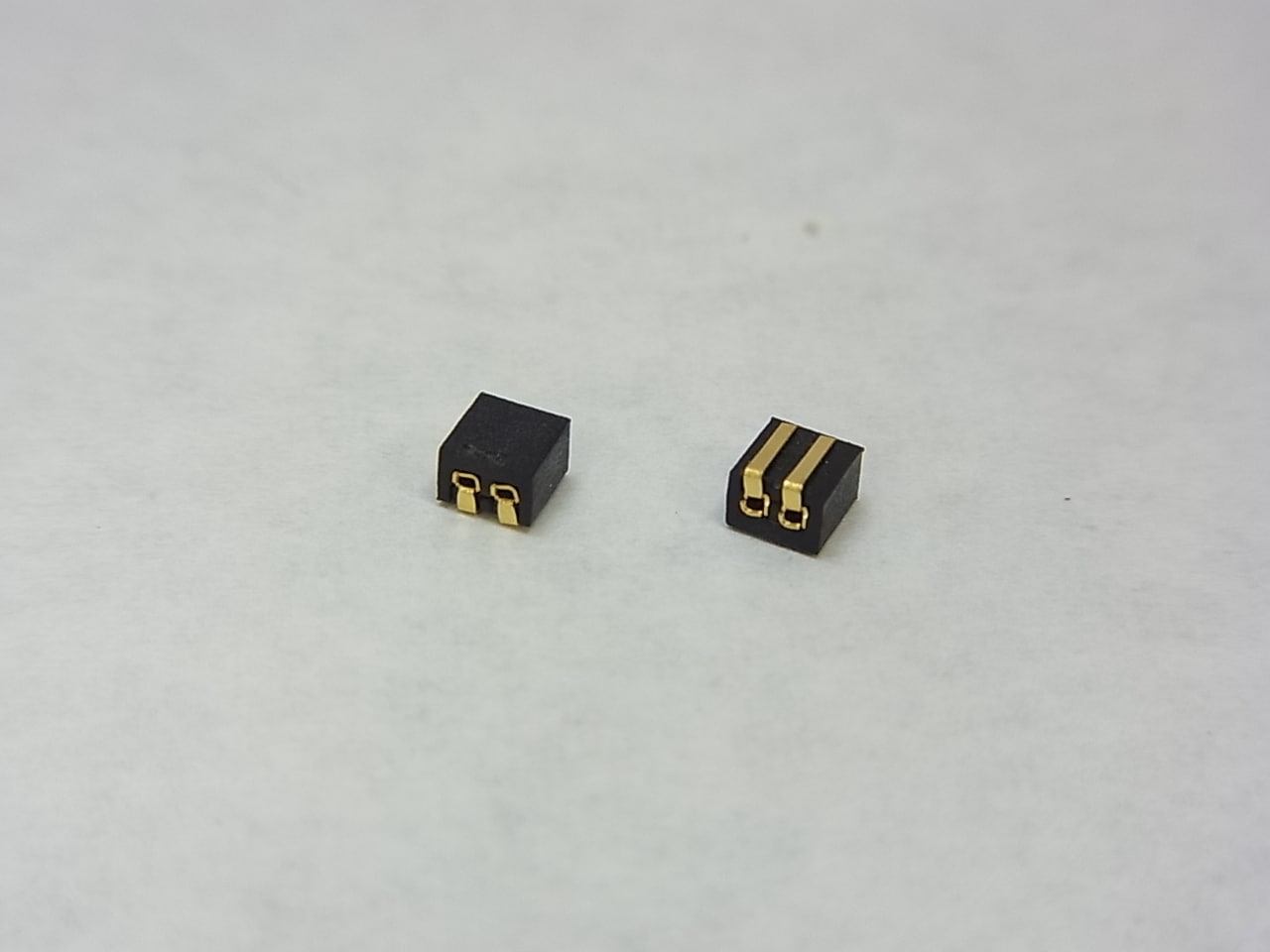

HHP-2
Magazine (100pcs/pack)
HHP-2-T
Reel (700pcs/reel)

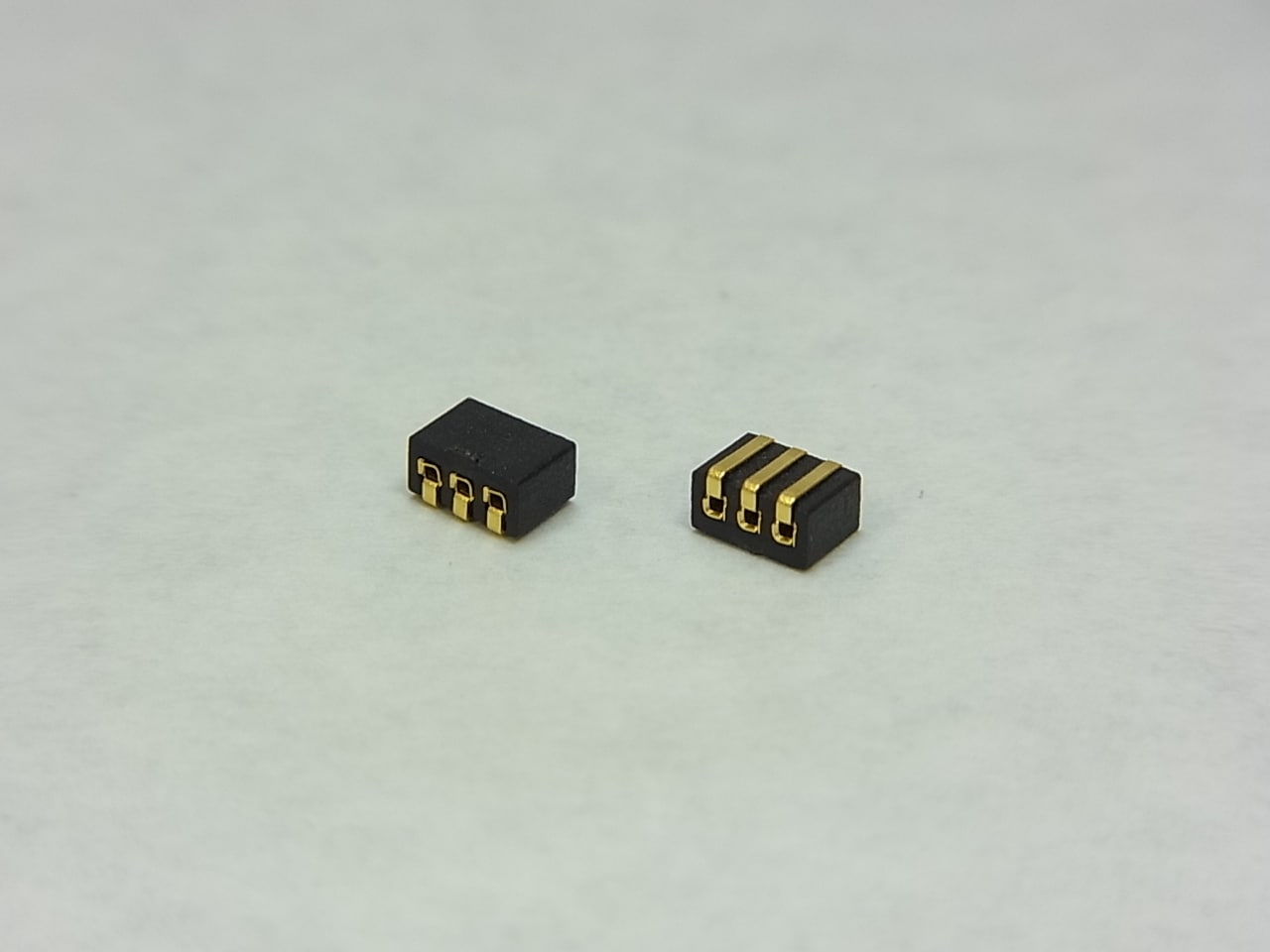

HHP-3
Magazine (100pcs/pack)
HHP-3-T
Reel (700pcs/reel)




   HPP-2

   HPP-3
